Description

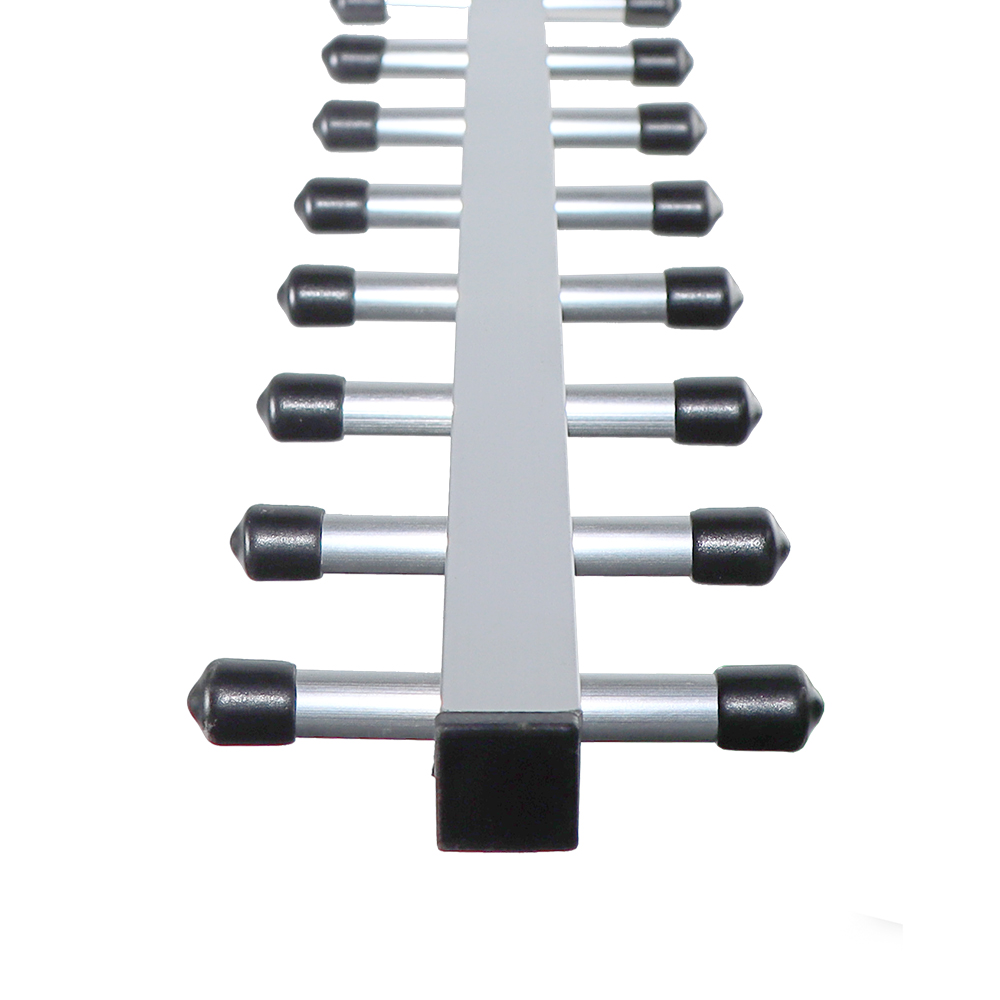

| Model型号 | WK-YAGI-15 |
| 技术指标Electrical specifications | |
| Frequency range 频率(MHz) | customized |
| Polarization极化方式 | Vertical |
| Gain增益(dBi) | 15 |
| Vertical Beamwidth (°)垂直波瓣宽度 | 33±3 |
| Horizontal Beamwidth (°)水平波瓣宽度 | 33±3 |
| Impedance阻抗(Ω) | 50 |
| VSWR驻波比 | ≤1.5 |
| Maximum power最大功率(W) | 100 |
| Lightning protection雷电保护 | DC Ground |
| 机械指标Mechanical specifications | |
| Connector接头型号 | N Female |
| Height × width × depth长宽高(mm) | 850×200 ×80 |
| Antenna weight天线重量(kg) | 0.5 |
| Rated wind velocity抗风强度(m/s) | 60 |
| Reflector material反射面材料 | Aluminum Alloy |
| Cable 电缆 | RG58 |
| Radome color外罩颜色 | Sliver |
| Operating temperature工作温度(℃) | -40～70 |
