| Electrical specifications |
| Frequency range (MHz) |
425-440 MHZ/860-930 MHZ/1160-1280 MHZ/1550-1620 MHZ 2.4-2.485GHz 5.15-5.35GHz/5.725-5.85GHz |
| Polarization |
Vertical |
| Gain (dBi) |
6dBi 8dBi 10dBi |
| Horizontal Beam width (°) |
360 |
| Impedance (Ω) |
50 |
| VSWR |
≤2.0 |
| Maximum input power (W) |
100 |
| Lightning protection |
DC Ground |
| Mechanical specifications |
| Connector |
N-Female |
| Antenna length (mm) |
Φ32*500 / 32*1000 （as per freq./customized ） |
| Antenna weight (kg) |
1.5 |
| Radome Material |
Fiberglass |
| Rated wind velocity (km/h) |
160 |
| Mounting way |

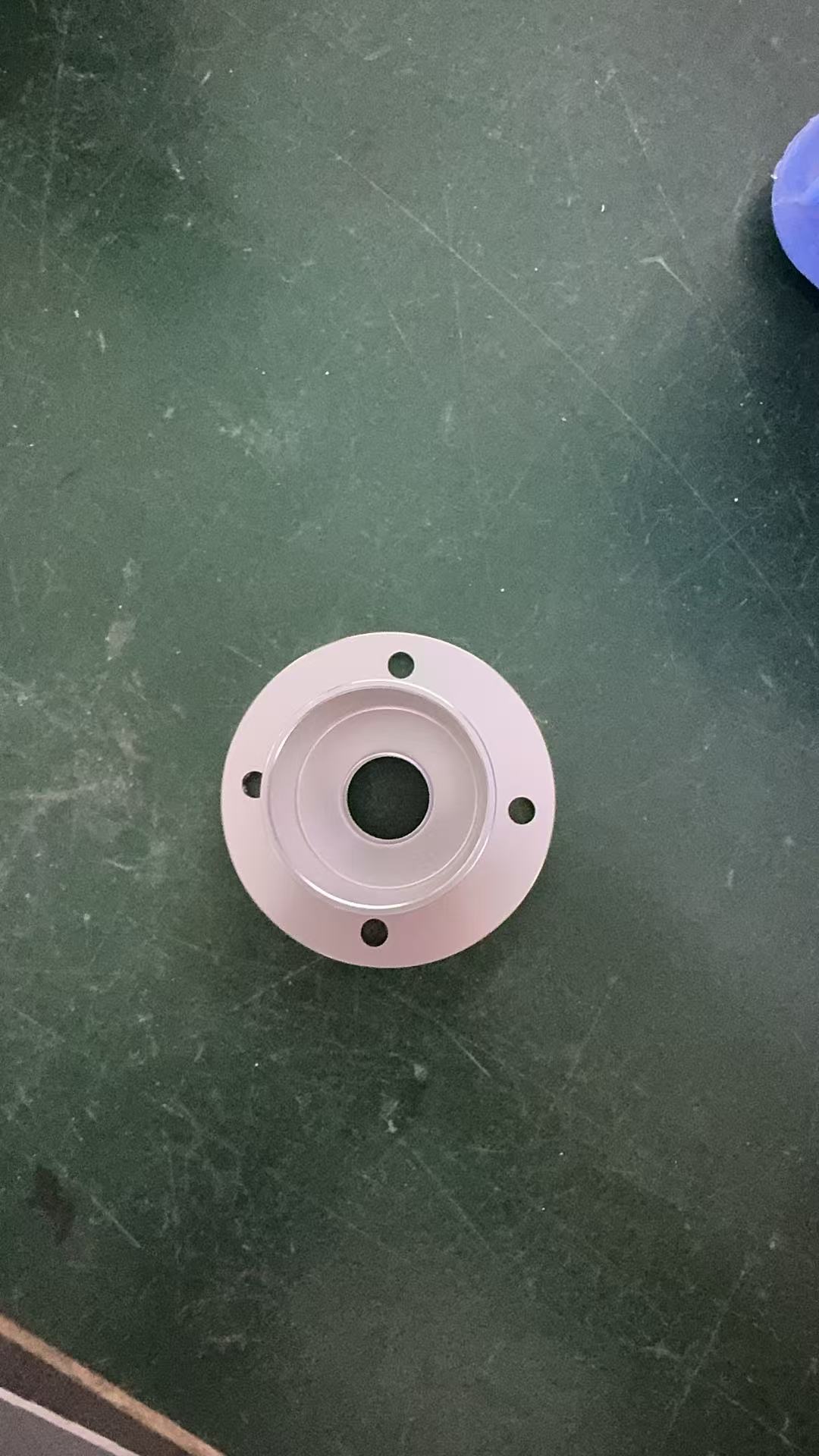

Flange 4 holes(Customized) |
| Vibratoin |
Mil-STD-810G |
| Ambient temperature |
-40℃~+60 |
| Water ingress rating |
IP65 |
