Product Overview

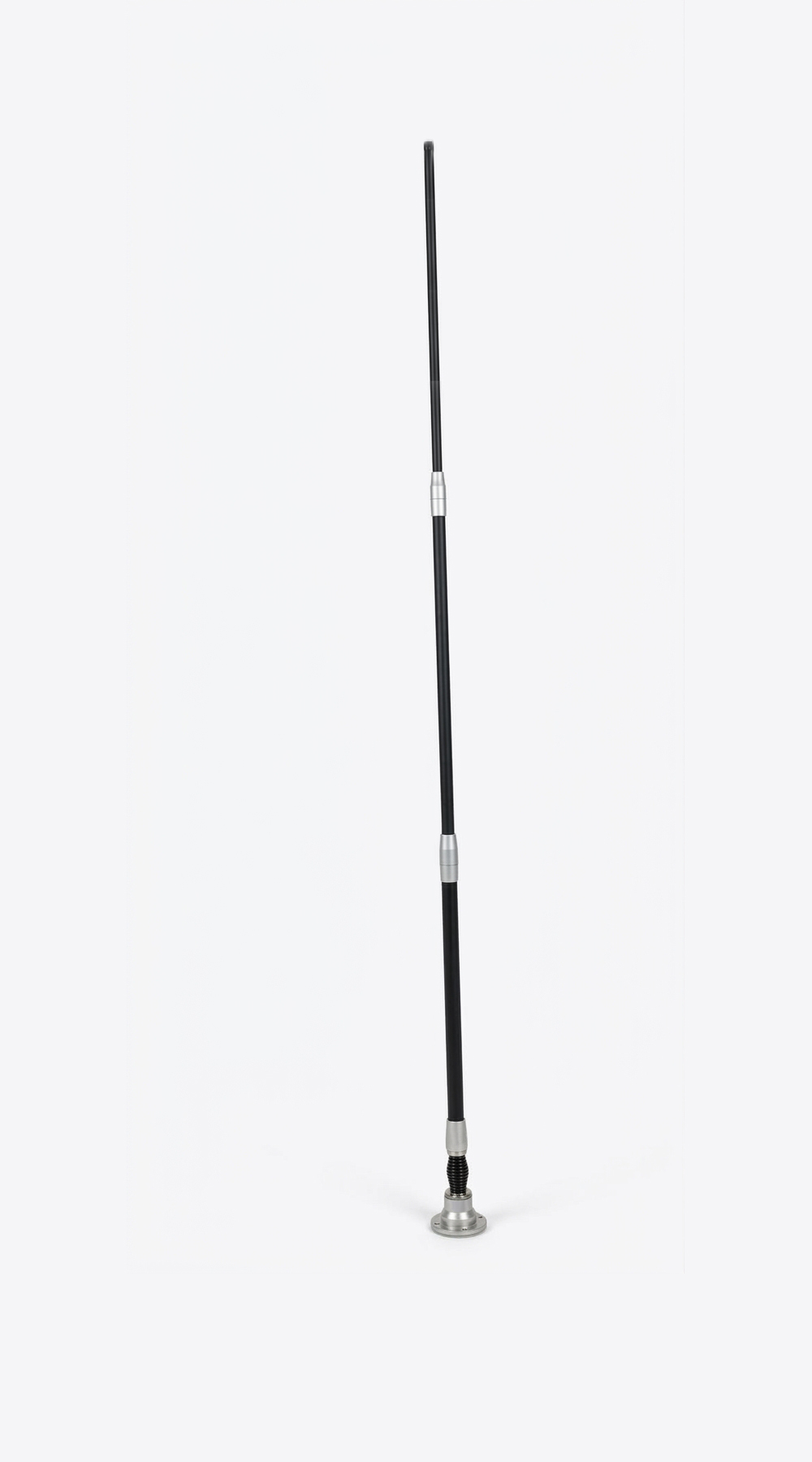

This is a dual-band, omnidirectional, vehicle-mounted antenna covering 30-88 MHz (VHF Low Band) and 400-470 MHz (UHF Band) simultaneously through a single fiberglass radiating element. Built for tactical and mobile communication platforms, it combines two independent frequency bands in one compact, ruggedized whip, eliminating the need for separate VHF and UHF antennas on the same vehicle.
The antenna features a high-strength fiberglass-reinforced (FRP) radome, a flange-ring base mount for secure vehicle installation, and a shock-absorbing spring integrated above the mounting flange to protect the antenna and feed point from vibration, road shock, and mechanical stress during mobile operation. Two independent N-type female connectors at the base provide isolated RF feed paths for the VHF and UHF bands respectively.
Key Features
- Dual-band coverage: 30-88 MHz and 400-470 MHz in a single antenna assembly
- Omnidirectional radiation pattern for reliable 360° coverage on moving vehicles
- Low VSWR: ≤ 2:1 across both operating bands
- Fiberglass whip construction — corrosion-resistant, lightweight, and durable for outdoor/mobile use
- Flange-ring base mount for stable, permanent vehicle installation
- Integrated spring shock absorber above the base — reduces base/connector fatigue from vibration and impact
- Dual N-female connectors at the base — separate feed lines for VHF and UHF, no internal diplexer needed on the customer side
- Overall length: 3 meters (3m)
- Suitable for tactical vehicles, command vehicles, mobile communication shelters, and field/emergency communication platforms
Technical Specifications
| Parameter | Specification |
|---|---|
| Frequency Range | 30-88 MHz / 400-470 MHz (dual band) |
| VSWR | ≤ 2:1 |
| Radiation Pattern | Omnidirectional |
| Antenna Length | 3 m (3000 mm) |
| Material | Fiberglass reinforced (FRP) radome |
| Base Mount Type | Flange ring mount |
| Shock Protection | Integrated spring, above mounting flange |
| RF Connectors | 2 x N-type female (one per band) |
| Typical Applications | Vehicle-mounted tactical/military comms, mobile command posts, VHF/UHF two-way radio systems |
Applications
- Military and tactical vehicle communication systems
- Mobile command and control vehicles
- Emergency response and public safety vehicle fleets
- VHF/UHF combined two-way radio installations where deck space or mounting points are limited
Why Choose This Dual-Band Antenna
Combining VHF Low Band (30-88 MHz) and UHF (400-470 MHz) coverage into one 3-meter fiberglass whip reduces the number of antennas, mounting points, and cable runs needed on a vehicle roof — simplifying installation while maintaining low VSWR (≤2:1) performance on both bands. The flange-mount base with integrated spring is designed for the vibration and mechanical loads typical of mobile and tactical use, extending service life in the field.
